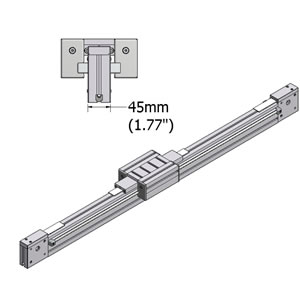

Linear Positioner T45 LR12
Part. N° SP011713-1
CAD DOWNLOAD ► 3D STEP | PDF | Inventor 2018
| APPLICATIONS | |
|---|---|
| - Linear scanning & positioning applications | |
| - Speeds up to 3M/S | |
| - Maximum Torque 70 Nm (51.6 Ft-Lb) | |
| - Pick & place |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - See itemized list for included components | |
| - Motor & motor mounting sold seperately | |
| - Travel length to 5.6 meters(221") (longer travel possible by joining rails) |
|
- Click here for load capacity |
|
| - Repeatability +/- .25mm(.01") |
| ASSEMBLY |
|---|
| - Unit Ships Fully Assembled |
